Chrome DevTools
What Is Chrome Developer Tools?
The Google Chrome Developer Tools, also known as Chrome DevTools, are web authoring and debugging tools built right into the browser. They provide developers deeper access into their web applications and the browser.You can do everything from testing the viewport on a mobile device to editing a website on the fly, and even measuring the performance of an entire website or individual assets.To use the latest version of the developer tools, you may want to use Chrome Canary, which is the experimental version of Chrome that is updated nightly. Chrome Canary can be run side by side with Chrome so you can check any issues that may arise.
You can enhance your development by going to chrome://flags
and enabling the Developer Tools experiments
feature. You can then use the settings panel in developer tools to toggle individual experiments.
We will be mentioning some of the Chrome DevTools keyboard shortcuts below, but you can see a full list of them on the Google Developer website.
1. Select DOM Elements
If you’re familiar with jQuery, you know how important the $(‘.class’) and $(‘#id’) selectors are. They select the DOM elements depending upon the class or ID associated with them.
But when you don’t have access to jQuery in the DOM, you can still do the same in the developer console.
$(‘tagName’) $(‘.class’) $(‘#id’) and $(‘.class #id’) are equivalent to the document.querySelector(‘ ‘). This returns the first element in the DOM that matches the selector.
You can use $$(‘tagName’) or $$(‘.class’) — note the double dollar signs — to select all the elements of the DOM depending on a particular selector. This also puts them into an array. You can again go ahead and select a particular element among them by specifying the position of that element in the array.
For example, $$(‘.className’) will give you all the elements that have the class className, and $$(‘.className’)[0]and $$(‘.className’)[1] will give you the first and the second element respectively.
2. Convert Your Browser Into An Editor
How many times have you wondered whether you could edit some text in the browser itself? The answer is yes, you can convert your browser into a text editor. You can add text to and remove text from anywhere in the DOM.
You don’t have to inspect the element and edit the HTML anymore. Instead, go into the developer console and type the following:
document.body.contentEditable=true
This will make the content editable. You can now edit almost anything and everything in the DOM.
3. Find Events Associated with an Element in the DOM
While debugging, you must be interested in finding the event listeners bound to an element in the DOM. The developer console makes it easier to find these.
getEventListeners($(‘selector’)) returns an array of objects that contains all the events bound to that element. You can expand the object to view the events:
To find the Listener for a particular event, you can do something like this:
getEventListeners($(‘selector’)).eventName[0].listener
This will display the listener associated with a particular event. Here eventName[0] is an array that lists all the events of a particular event. For example:
getEventListeners($(‘firstName’)).click[0].listener
…will display the listener associated with the click event of element with ID ‘firstName’.
4. Monitor Events
If you want to monitor the events bound to a particular element in the DOM while they are executed, you can this in the console as well. There are different commands you can use to monitor some or all of these events:
- monitorEvents($(‘selector’)) will monitor all the events associated with the element with your selector, then log them in the console as soon as they’re fired. For example, monitorEvents($(‘#firstName’)) will log all the events bound to the element with the ID of ‘firstName’ .
- monitorEvents($(‘selector’),’eventName’) will log a particular event bound with an element. You can pass the event name as an argument to the function. This will log only a particular event bound to a particular element. For example, monitorEvents($(‘#firstName’),’click’) will log all the click events bound to the element with the ID ‘firstName’.
- monitorEvents($(‘selector’),[‘eventName1’,’eventName3',….]) will log multiple events depending upon your own requirements. Instead of passing a single event name as an argument, pass an array of strings that contains all the events. For example monitorEvents($(‘#firstName’),[‘click’,’focus’]) will log the click event and focus events bound to the element with the ID ‘firstName’ .
- unmonitorEvents($(‘selector’)) : This will stop monitoring and logging the events in the console.
5. Find the Time Of Execution of a Code Block
The JavaScript console has an essential function called console.time(‘labelName’) which takes a label name as an argument, then starts the timer. There’s another essential function called console.timeEnd(‘labelName’) which also takes a label name and ends the timer associated with that particular label.
For example:
console.time('myTime'); //Starts the timer with label - myTimeconsole.timeEnd('myTime'); //Ends the timer with Label - myTime//Output: myTime:123.00 ms
The above two lines of code give us the time taken from starting the timer to ending the timer.
We can enhance this to calculate the time taken for executing a block of code.
For example, let’s say I want to find the time taken for the execution of a loop. I can do like this:
console.time('myTime'); //Starts the timer with label - myTimefor(var i=0; i < 100000; i++){ 2+4+5;}console.timeEnd('mytime'); //Ends the timer with Label - myTime//Output - myTime:12345.00 ms

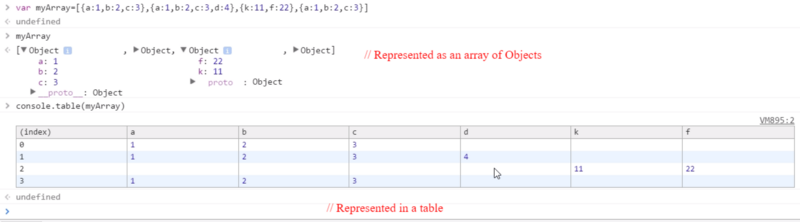

6. Arrange the Values of a Variable into a Table
Let’s say we have an array of objects that looks like the following:
var myArray=[{a:1,b:2,c:3},{a:1,b:2,c:3,d:4},{k:11,f:22},{a:1,b:2,c:3}]
When we type the variable name into the console, it gives us the values in the form of an array of objects. This is very helpful. You can expand the objects and see the values.
But this gets difficult to understand when the properties increase. Therefore, to get a clear representation of the variable, we can display them in a table.
console.table(variableName) represents the variable and all its properties in a tabular structure. Here’s what this looks like:
7. Inspect an Element in the DOM
You can directly inspect an element from the console:
- inspect($(‘selector’)) will inspect the element that matches the selector and take you to the Elements tab in the Chrome Developer Tools. For example inspect($(‘#firstName’)) will inspect the element with the ID ‘firstName’ and inspect($(‘a’)[3]) will inspect the 4th anchor element you have in your DOM.
- $0, $1, $2, etc. can help you grab the recently inspected elements. For example $0 gives you the last-inspected DOM element, whereas $1 gives you the second last inspected DOM Element.
8. List the Properties of an Element
If you want to list all the properties of an element, you can do that directly from the Console.
dir($(‘selector’)) returns an object with all of the properties associated with its DOM element. You can expand these to view them in more detail.
9. Retrieve the Value of your Last Result
You can use the console as a calculator. And when you do this, you may need to follow up one calculation with a second one. Here’s how to retrieve the result of a previous calculation from memory:
$_
Here’s what this looks like:
2+3+49 //- The Answer of the SUM is 9$_9 // Gives the last Result$_ * $_81 // As the last Result was 9Math.sqrt($_)9 // As the last Result was 81$_9 // As the Last Result is 9
10. Clear the Console and the Memory
If you want to clear the console and its memory, just type:
clear()
